Yamaha R15M Motorcycle
Category: Street
Specifications
Engine
Engine Type: Liquid Cooled, 4-Stroke, SOHC, 4-Valve, VVA
Cylinder Arrangement: Single Cylinder
Displacement: 155CC
Hole x Stroke: 58.0 x 58.7 mm
Compression Ratio: 11.6:1
Maximum Power: 14.2 kW/10000 rpm
Maximum Torque: 14.7 Nm/8500 rpm
Lubrication: Wet Reservoir
Starting System: Electricity
Fill the Engine Oil Tank: 1.05 L
Ignition System: TCI
Transmission
Transmission Type: 6-Speed Manual
Clutch Type: Basah, Multiplat, Assist & Slipper Clutch
Chassis
Frame Type: Deltabox
Overall Length: 1990 mm
Overall Width: 725 mm
Overall Height: 1135 mm
Seat Height: 815 mm
Minimum Distance from Ground: 160mm
Wet Weight: 137kg
Fuel Tank Fill: 11 L
Brakes
Front Brake: Disc
Rear Brake: Disc
Suspension
Front Suspension: Telescopic Fork (Inverted)
Rear Suspension: Link Mono-shock
Tires
Front Tire: 100/80 17M/C 52P
Rear Tire: 140/70 17M/C 66S
Color
Option 1, Option 2
Details
Features
.jpg)

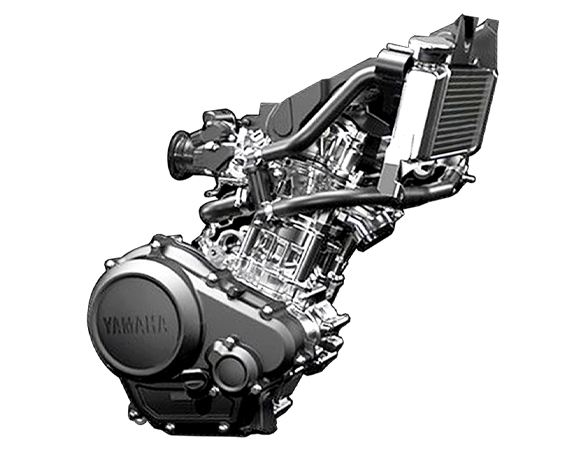

155CC LC4V ENGINE WITH VVA
Powered by a 155CC Single Overhead Cam (SOHC) fuel-injected engine with VVA technology for more optimal power performance.
ASSIST AND SLIPPER CLUTCH
Assist and slipper clutch is adopted to reduce the weight of the clutch pull and provide low-stress shifting during deceleration. It provides a smoother ride, the gear shift is lighter and the quicker acceleration.

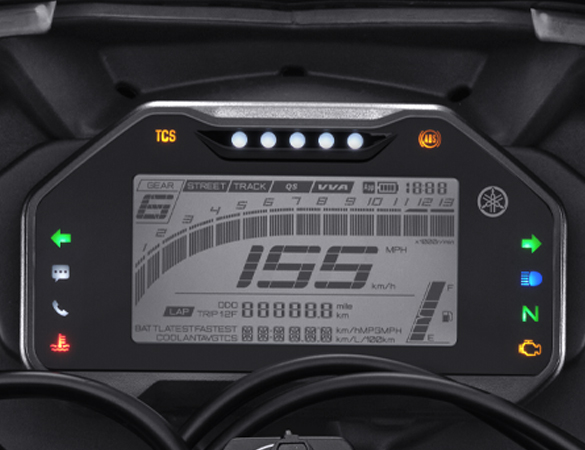

METER DIGITAL LCD FULLY CONCEPTED YAMAHA YZR-M1
Featuring a full LCD digital display, complete with STREET mode and TRACK mode.
LED TAIL LIGHT
LED technology provides brighter lighting with better energy savings and longer lasting.
REAR TIRE WIDER
This tire combination increases maximum grip during cornering and provides greater confidence.
